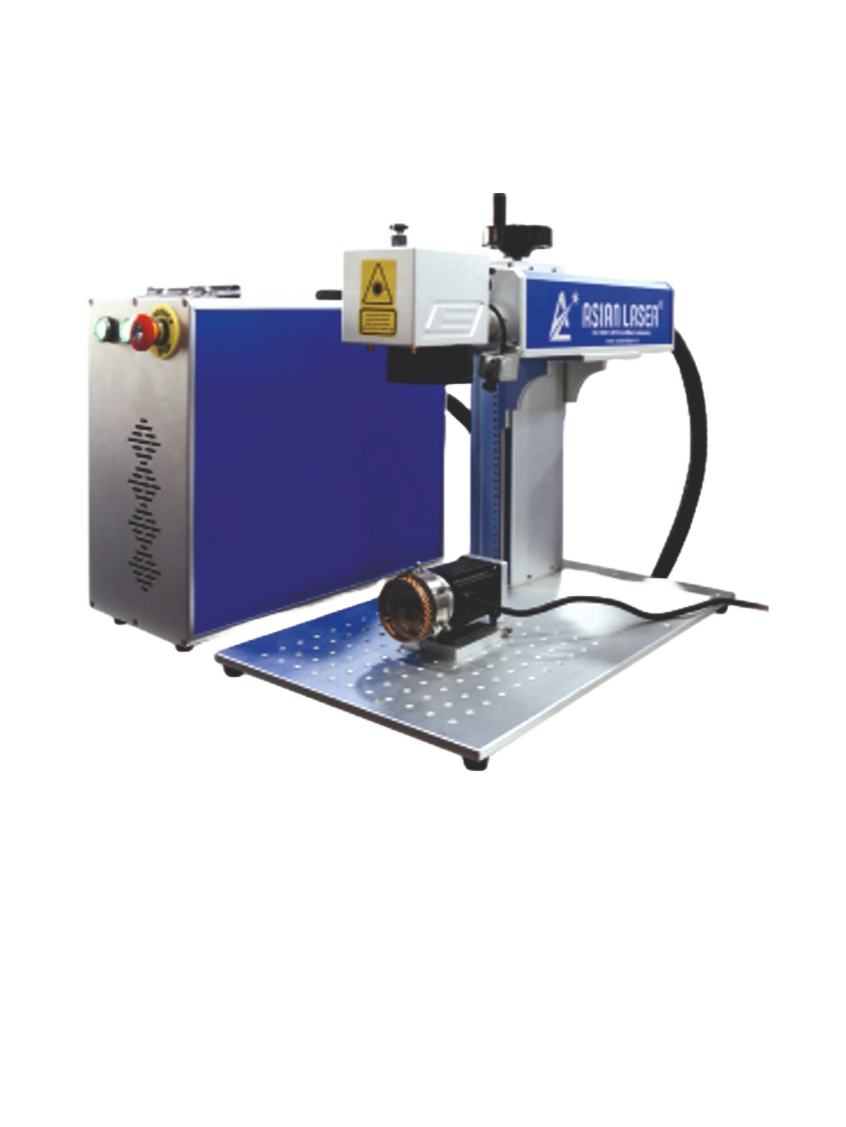

Laser Marking Machine ALX 20
The 20 Watt Compact Jewellery Laser Marking Machine is a powerful, space-saving solution for jewellers and hallmarking centers. Designed for accurate, clean, and permanent laser marking, this compact model is ideal for marking gold, silver, platinum, and other precious metals-all from your desktop or workshop corner. Perfect for BIS hallmarking, branding, QR code engraving, and name personalization, it ensures zero contact marking, ultra-fine detail, and long-term reliability with minimal power use.
Key Features
- Reliable
- Electric Energy Saving
- Easy Operation
- Decrease material loss
- 24 hrs of continuous work.
- 20W Fiber Laser Compact, Durable & Efficient
- Smalt Footprint- Fits Any Jewellery Counter or Workshop
- High-Speed, high-Precision Marking
- Perfect for Gold, Silver & Platinum
- BIS Hallmarking Ready – Fine Detail Output
- Low Maintenance & Air-Cooled
- User-Friendly Software Interface
Applications
- BIS Hallmarking on Gold & Silver
- Logo, QR Code, Serial Number Marking
- Jewellery Branding & Personalization
- Name Engraving on Rings, Bangles, Pendants
- High-Contrast Surface Engraving
Technical Specification
| Model | Unit | ALX 20 |
| Power | Watt | 20 |
| Wavelength | nm | 1064 |
| Repeated Frequency | Khz | 20-60 |
| Light Beam Quality | M2 | <1.5 |
| Carving Range | mm | 100 x 100 |
| Carving Depth | mm | 0.2 |
| Carving Line Speed | mm/s | 6000 |
| Minimum Line | mm | 0.02 |
| Minimum Charactor Size | mm | 0.2 |
| Repeating Precision | mm | 0.002 |
| Power Supply | VAC | 220/50 Hz |
| Power Consumption | Watt | 400 |
| Operating System | – | Win 10 |
| Cooling Method | – | Air |
| Control Interface | – | USB |
| File Format | – | .plt/.dxf/.svg |
| Weight | KG | 30 |
