Laser Cutting Machine ALX 30, 50, 60, 100

Laser Engraving/ Cutting Machine ALX 30, 50, 60 & 100

Our Jewellery Laser Deep Engraving & Cutting Machines are designed for high-precision metal cutting and deep engraving on all precious metal.

Engineered for precision-driven jewellery manufacturing, the ALX 30, 50, 60 & 100 series delivers consistent performance across intricate cutting and deep engraving applications. With superior beam quality (<1.7 M²) and high-speed processing up to 6000 mm/s, these systems ensure clean cuts, sharp detailing, and minimal metal loss across gold, silver, and other precious materials.

Integrated support for inert gas enables oxidation-free finishes, while the dust collector provision maximizes gold recovery and operational efficiency. Designed for scalability, from prototyping to bulk production this range is ideal for businesses seeking the best laser engraving machine for jewelry and the best laser cutting machine for jewelry, ensuring precision, repeatability, and long-term reliability in demanding production environments.

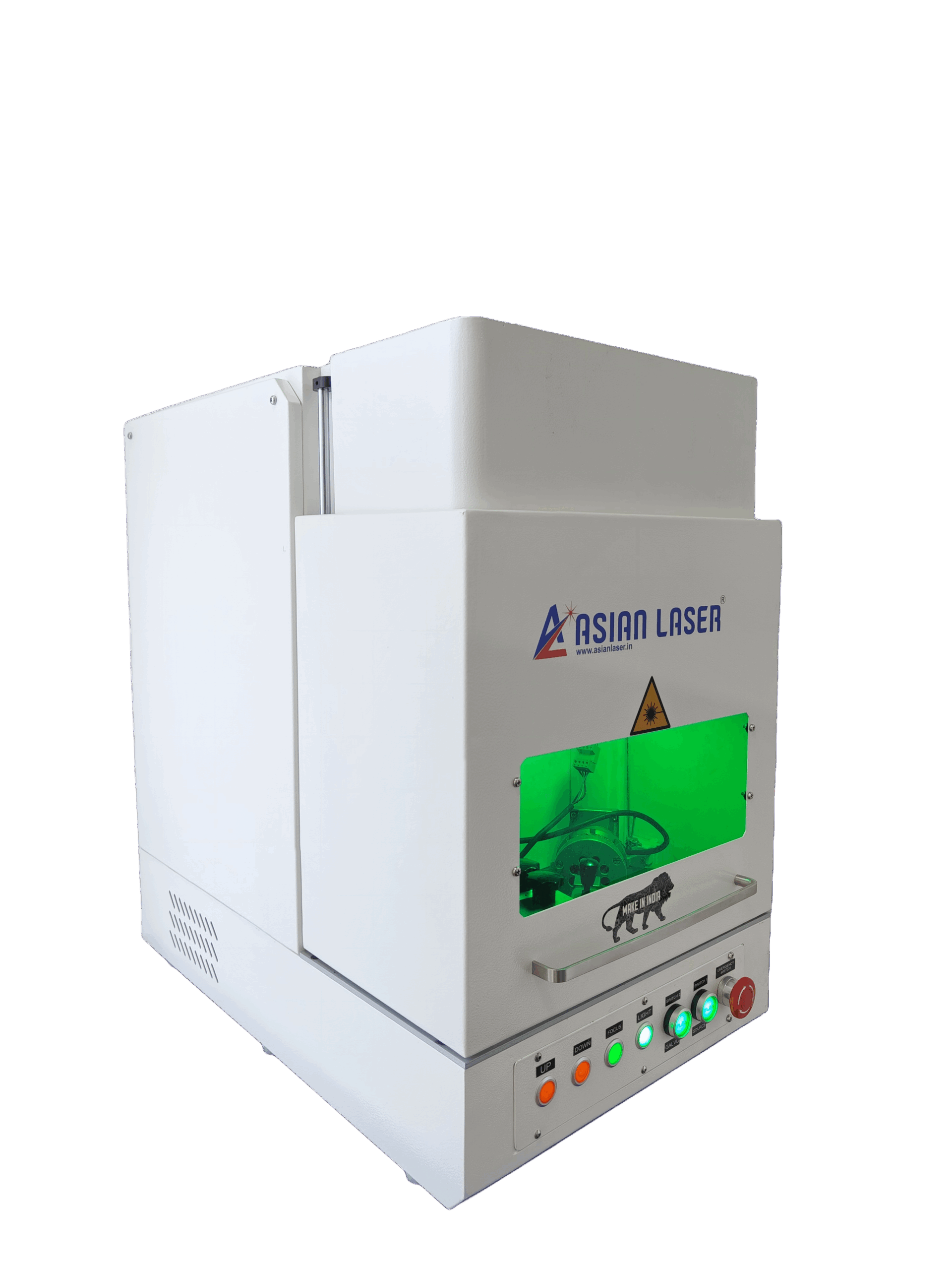

Laser Deep Engraving and Cutting Machine Model ALX 30, 50, 60 & 100
Download PDF

Key Features

  • Deep Engraving – Perfect for Logos
  • Fine Cutting – Smooth Edges, Minimal Metal Loss
  • Provision for Dust Collector – Gold Recovery
  • Inert Gas Compatible – Oxidation-Free
  • Air-Cooled, Maintenance-Free Design

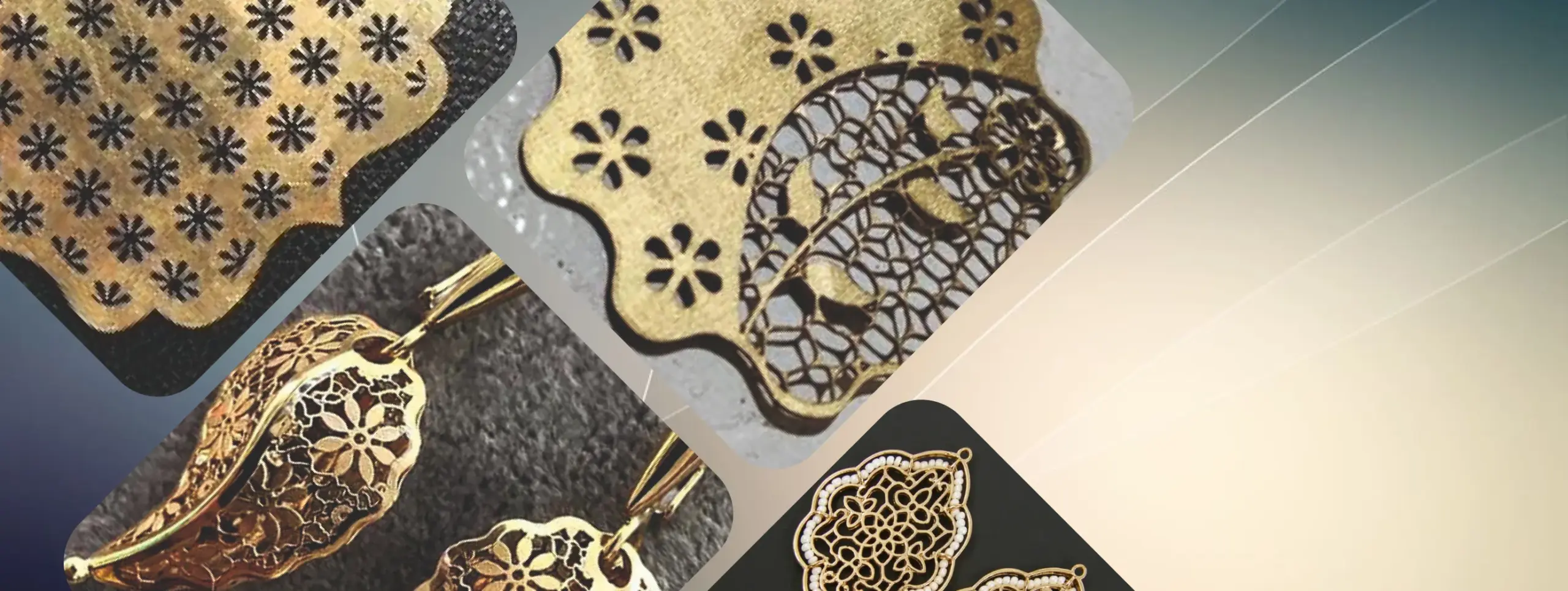

Application

  • Gold & Silver Name Pendants
  • Designer Jewellery Cutting
  • Prototyping and Small-Batch Customisation
  • Filigree Work & Designer Jewellery
  • Ornaments, Charms & Religious Symbols
  • Bulk Jewellery Production
  • Export-Grade Ornament Manufacturing

Technical Specification

Model Unit ALX 30 ALX 50 ALX 60 ALX 100
Power Watt 30 50 60 100
Wavelength nm 1064 1064 1064 1064
Repeated Frequency Khz 25-60 40-70 45-80 75-85
Light Beam Quality M2 <1.7 <1.7 <1.7 <1.7
Carving Range mm 50 x 50 50 x 50 50 x 50 50 x 50
Carving Depth mm 0.3 0.5 0.6 1
Carving Line Speed mm/s 6000 6000 6000 6000
Minimum Line Width mm 0.02 0.03 0.04 0.08
Minimum Charactor Size mm 0.20 0.30 0.30 0.60
Repeating Precision mm 0.002 0.002 0.002 0.003
Power Supply VAC 220 ACV/ 50 Hz 220 ACV/ 50 Hz 220 ACV/ 50 Hz 220 ACV/ 50 Hz
Power Consumption Watt 400 600 800 1000
Operating System – Win 10 / Win 11 Win 10 / Win 11 Win 10 / Win 11 Win 10 / Win 11
Cooling Method – Air Air Air Air
Control Interface – USB USB USB USB
File Format – .plt/.dxf/.svg .plt/.dxf/.svg .plt/.dxf/.svg .plt/.dxf/.svg
Weight KG 55 75 75 85
Size mm 750 x 450 x 710 750 x 450 x 710 750 x 450 x 710 750 x 450 x 710
